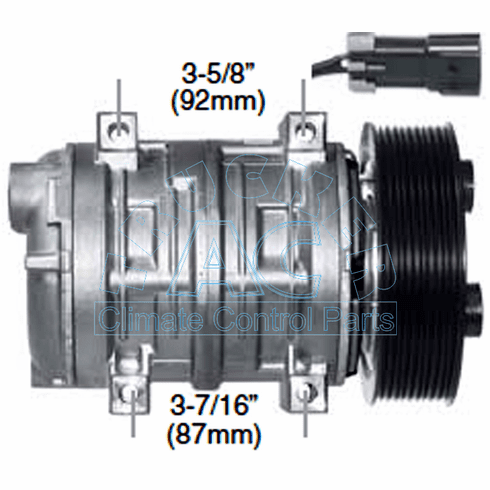

Seltec Compressor OEM# 103-67272 Farm & Off-Road
CASE / IH, All w/Direct Mount, TM21HX 10gr, 141mm dia. 24V 2 wire, OEM# 103 67272
CATERPILLAR, All w/Direct Mount, TM21HX 10gr, 141mm dia. 24V 2 wire, OEM# 103 67272
JOHN DEERE, All w/Direct Mount, TM21HX 10gr, 141mm dia. 24V 2 wire, OEM# 103-67272
ALL EQUIPMENT CLASS VEHICLES, SELTEC / VALEO, TM21HX, 10gr, 141mm dia. 24V, 2 wire, OEM# 103 67272
Specifications
Manufacturer #: 10367272
Application: Bus Applications
Description: TM21 w/10GR 141MM 24V 2W-D
Volts: 24V
Clutch Diameter: 141mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 13.1 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: TM21
Wire Type: 2 Wire Metripack
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM21HX
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5928 10367272 103-67272
CATERPILLAR, All w/Direct Mount, TM21HX 10gr, 141mm dia. 24V 2 wire, OEM# 103 67272
JOHN DEERE, All w/Direct Mount, TM21HX 10gr, 141mm dia. 24V 2 wire, OEM# 103-67272
ALL EQUIPMENT CLASS VEHICLES, SELTEC / VALEO, TM21HX, 10gr, 141mm dia. 24V, 2 wire, OEM# 103 67272
Specifications
Manufacturer #: 10367272
Application: Bus Applications
Description: TM21 w/10GR 141MM 24V 2W-D
Volts: 24V
Clutch Diameter: 141mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 13.1 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: TM21
Wire Type: 2 Wire Metripack
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM21HX
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5928 10367272 103-67272
