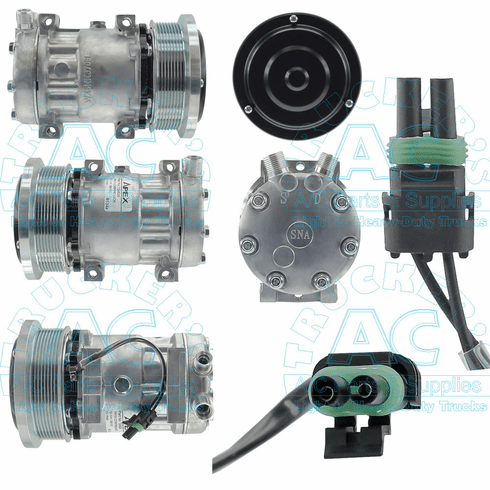

Sanden Style A/C Compressor - OEM# 4698 - Farm & Offroad

Sanden Style A/C Compressor - OEM# 4698 - Farm & Offroad

Item# 03-3800G
Availability: Usually ships the same business day.

  OEM Number: 4698
  Make: Sanden Style
  Manufacturer: QCC
  Manufacturer #: 4698
  Application: Farm & Off Road Applications
  Description: Sanden AFT Comp 8 gr 133mm
  Volts: 12V
  Clutch Diameter: 133mm
  No. of Grooves: 8 groove
  Belt Type: Serpentine
  No. Comp. Cylinders: 7 cyl
  Comp. Displacement (ci): 9.5
  Factory Oil Charge: 300cc Oil
  Fitting Port Position: Vertical
  Fitting Style: Male Insert O-Ring #8 & #10
  Head Type: JD
  Wire Type: 2 Wire Male Packard #12015792
  Replacement Compressor: NULL
  Replacement Clutch Assy.: 02-3472
  Replacement Head Assy: 03-6533
  Model: SD7H15-SHD
  Oil Type: PAG100
  Product Name: A/C Compressor w/clutch
  Refrigerant Type: R134a
  Rotation: CW
  Shaft Type: Long Key Shaft
  Notes: Aftermarket Model
  Diode Protection: None
  Truck Air Oring 1: 16-4208
  Truck Air Oring 2: 16-4210
  Truck Air Seal 1: 16-4208
  Truck Air Seal 2: 16-4210

  SANDEN #4698

  See below for related items

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
