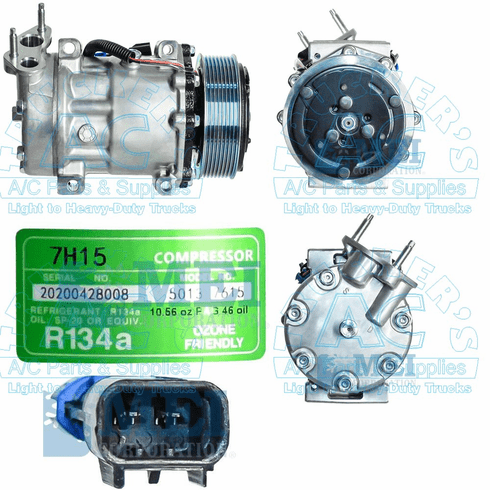

Sanden Style Compressor OEM#: 3808548-C1 - Aftermarket Grade - Navistar

OEM Number: 3808548-C1      Make: Sanden Style      Manufacturer: QCC      Manufacturer #: 4720      Application: Navistar Trucks      Description: Sanden AFT Comp 8 gr 119mm      Volts: 12V      Clutch Diameter: 119mm      No. of Grooves: 8 groove      Belt Type: Serpentine      No. Comp. Cylinders: 7 cyl      Comp. Displacement (ci): 13 cu.in.      Factory Oil Charge: 300cc Oil      Fitting Port Position: Horizontal      Fitting Style: Rear Navistar Special Pad      Head Type: 4347      Wire Type: 2 Wire Female Packard #15300002      Replacement Clutch Assy.: 02-0601      Replacement Head Assy: 03-6555      Model: SD7H15E      Oil Type: PAG100      Product Name: A/C Compressor w/clutch      Refrigerant Type: R134a      Rotation: CW      Shaft Type: Long Key Shaft      Notes: Aftermarket Model      Diode Protection: w/diode      Truck Air Oring 1: 16-4295      Truck Air Oring 2: 16-4296      Truck Air Seal 1: 16-4295      Truck Air Seal 2: 16-4296

INTERCHANGE:   AIRSOURCE 54720G   See below for related items

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
