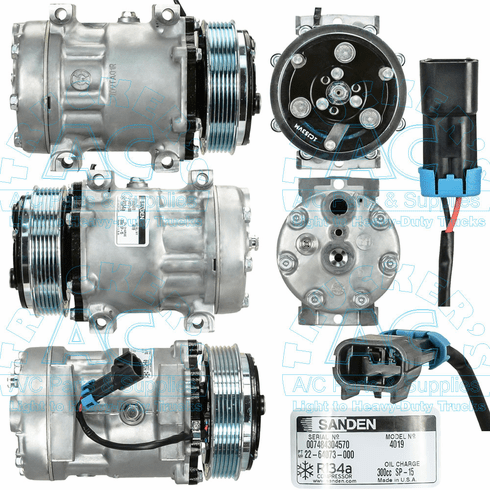

Sanden - Genuine #: 4019 - OEM #: 22-64073-000 - Bus Applications
Make: Sanden
Manufacturer #: 4019
Application: Bus Applications
Description: Sanden Enhanced Comp.
Additional Description: Enhanced Version
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/Slimline connections
Head Type: GH
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6551
Model: SD7H15E
Mounting Type: Direct Long
OEM Number: 22-64073-000
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4272
Truck Air Seal 1: 16-4272
INTERCHANGE: AIRSOURCE 54019; FREIGHTLINER 22-64073-000; SANDEN 4019
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
