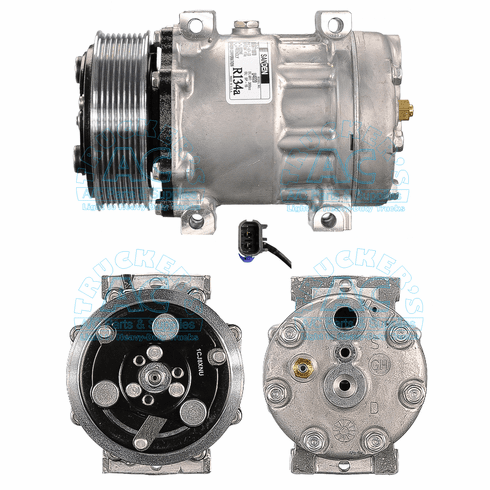

SANDEN 4020 Bus Applications Freightliner OEM# 22-64074-000
Specifications
Manufacturer #: 4020
Application: Bus Applications
Description: SANDEN ENHANCED COMPRESSOR
Additional Description: Enhanced Version
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/Slimline connections
Head Type: GH
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: 03-6551
Model: SD7H15E
Mounting Type: Direct Long
OEM Number: 22-64074-000
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4272
O-Ring #2: 16-4272
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 22-64074-000 2264074-000 22-64074000 2264074000 4020 54020
