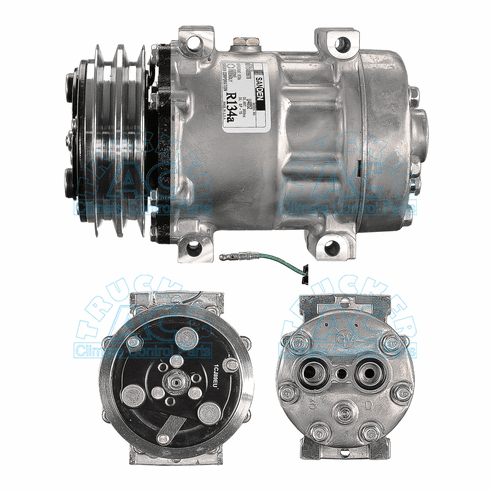

Sanden Compressor # 4052 Off Road Applications
Specifications
Manufacturer #: 4052
Application: Farm & Off Road Applications
Description: SANDEN ENHANCED COMPRESSOR
Additional Description: Enhanced Version
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-3471 see note
Replacement Head Assy: 03-6554
Model: SD7H15E
Mounting Type: Direct Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Additional Notes: HAS DIODE
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 4052
