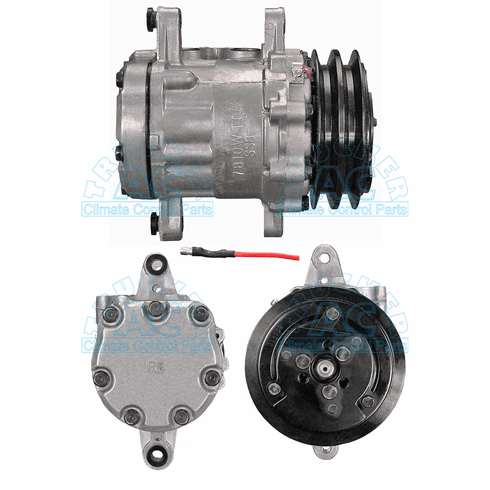

Sanden Compressor # 7170 Off Road Applications
Specifications
Manufacturer #: 7170
Application: Farm & Off Road Applications
Description: SANDEN SD7B10 COMP W/2GR CL.
Additional Description: Swing Mount Body
Volts: 12V
Clutch Diameter: 115mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 100cc Oil
Fitting Port Position: Body
Fitting Style: Pad
Head Type: Body Port
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7B10
Mounting Type: SD7B Swing Alternator 2 Top 2 Bottem
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: NSS
O-Ring #2: NSS
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE:
