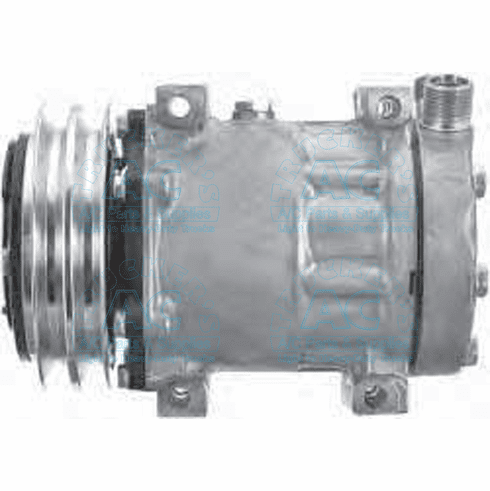

Sanden 4325 Freightliner OEM# 61104-3424
Freightliner, All w/2 gr 132mm, 24 Volt, Dir. Mount, JD Hd., Sanden 4325
Specifications
Manufacturer #: 4325
Application: Freightliner Trucks
Description: Sanden 24v Compressor
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JD
Wire Type: 1 Wire
Replacement Clutch Assy.: 02-3485
Replacement Head Assy: 03-6533
Model: SD7H15
Mounting Type: Direct mount
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 4325 61104-3424 611043424
