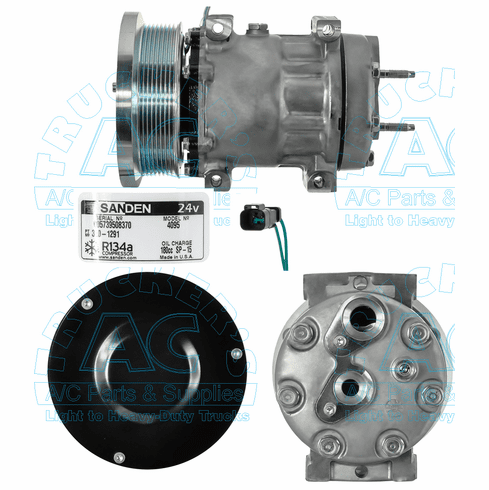

Sanden 4095 Compressor OEM# 320-1291
Specifications
Manufacturer #: 4095
Application: Farm & Off Road Applications
Description: SANDEN SD7H15SHD COMP/CAT 24V
Additional Description: Sealed HD style
Volts: 24V
Clutch Diameter: 130mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Special Pad
Head Type: 4095
Wire Type: 2 Wire Deutsch #DT04-2P-E (005, EP04, EP05)
Replacement Clutch Assy.: 02-3482
Replacement Head Assy: NSS
Model: SD7H15SHD
Mounting Type: Direct Long
OEM Number: 320-1291
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4295
O-Ring #2: 16-4296
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 54095 320-1291 3201291 4095
