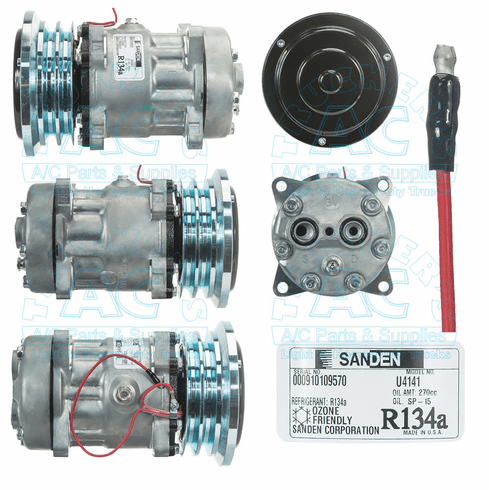

Sanden Compressor SD7H15SHD
Make: Sanden
Manufacturer: Sanden
Application: Farm & Off Road Applications
Description: SD7H15SHD COMP 2GR 12V
Description Note: Caterpillar applications
Volts: 12V
Other OE Sanden #: 4141
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: V-Belt
No. Comp. Cylinders: 7 cyl
Factory Oil Charge: 300cc Oil
Fitting Port Position: Rear
Fitting Style: Pad
Head Type: GV
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6554
Model: SD7H15-SHD
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Keyed shaft
Notes: Sealed HD clutch w/FLX7 head
Diode Protection: None
Truck Air Seal 1: 16-4224
INTERCHANGE: AIRSOURCE 54141; SANDEN 4141
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
